How to lay out UI elements using columns

1 min. read

The Balsamiq UI Library has a number of UI elements which are used as containers e.g. Browser Window, iPhone & iPad, Rectangle and Tabs. (Many user interface platforms and pattern libraries offer support for column layout e.g. Google Material Design)

Containers allow you to snap other UI Elements to a grid of columns to help with alignment, and simplify the overall design process. Laying out webpages just got easier!

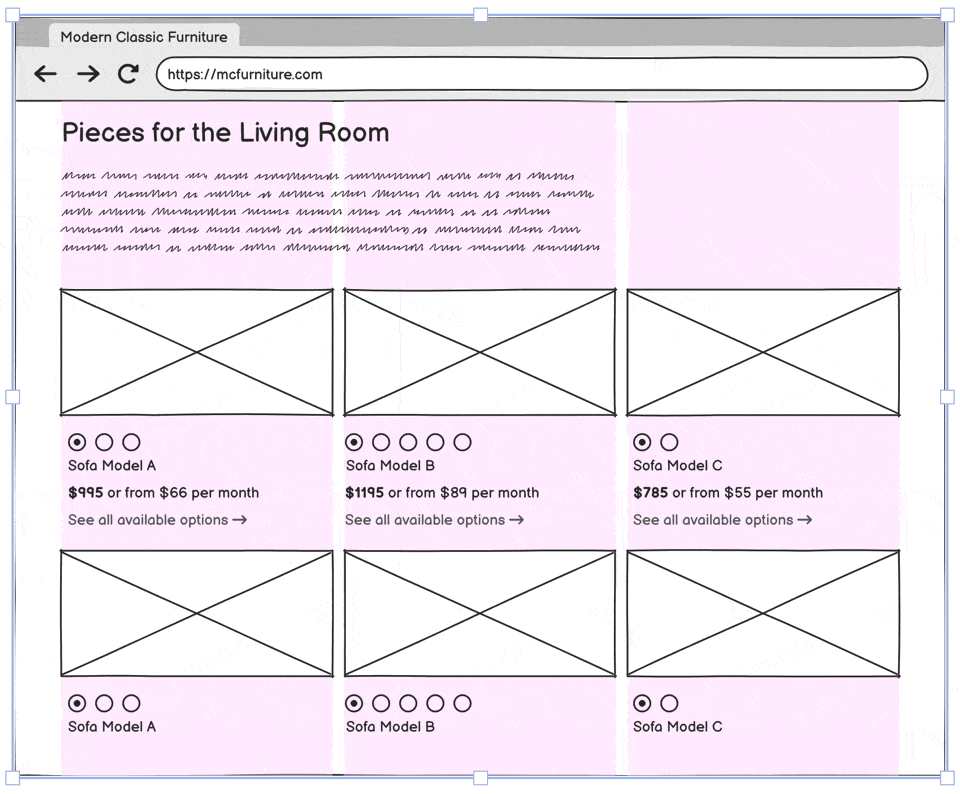

Align product listings into columns using container elements for clean, consistent layouts

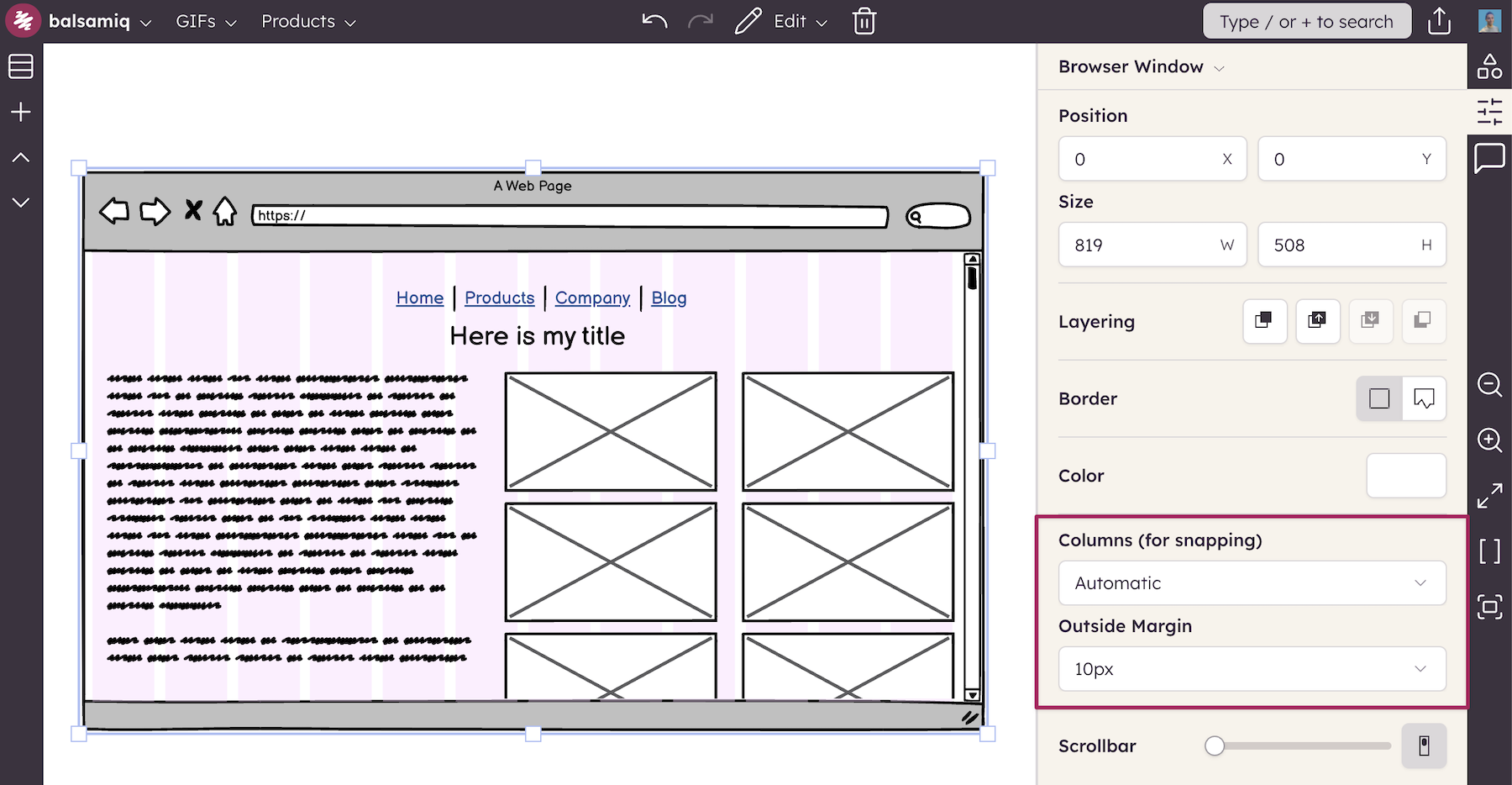

Select any container element on the Canvas and you'll see the column properties in the Property Inspector:

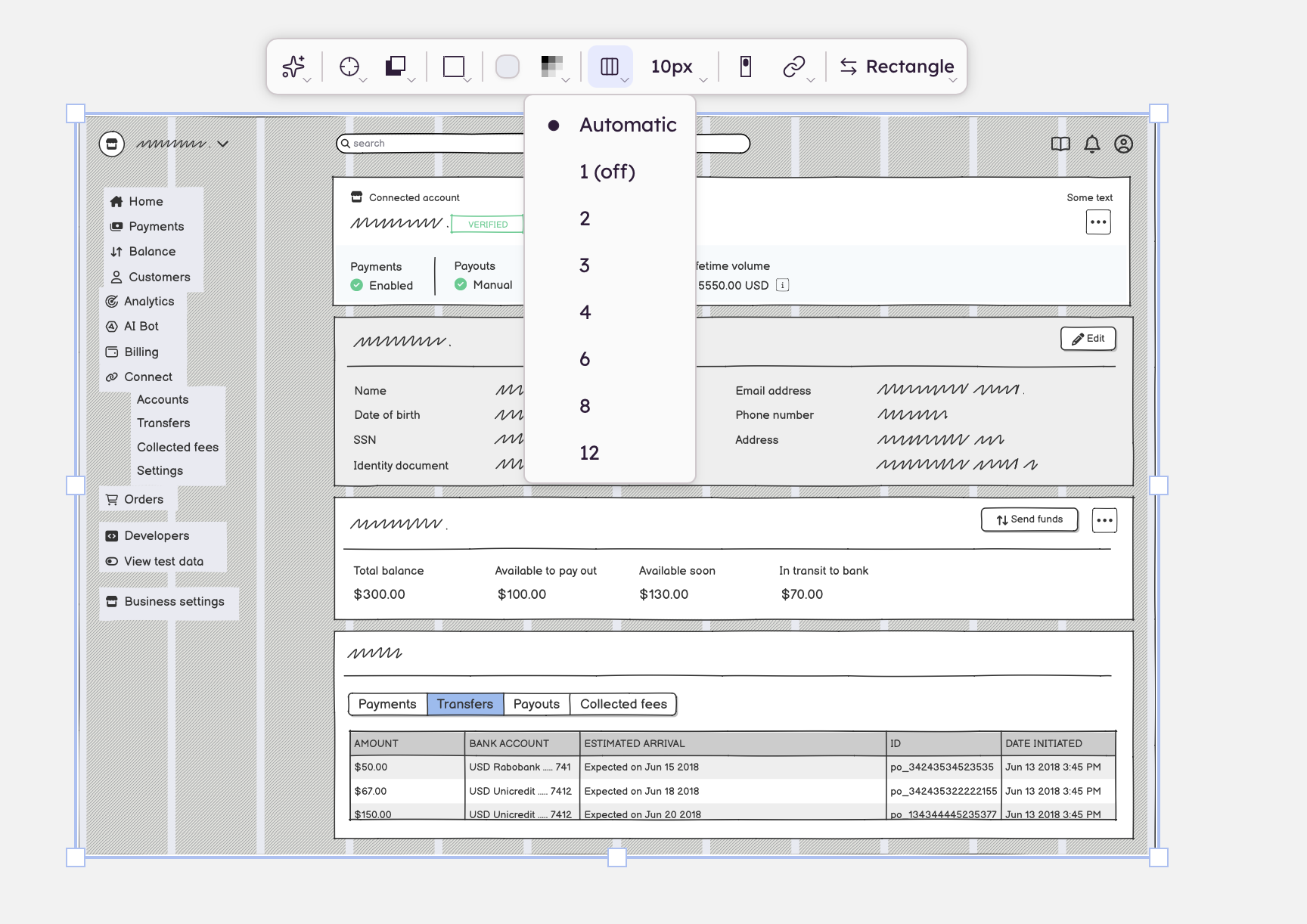

Use column snapping in browser window containers to align text and images neatly.

You can choose 1, 2, 3, 4, 6, 8, or 12 columns. If you select Automatic, we'll choose the appropriate number of columns based on the size of the UI element. You can also specify an Outside margin to center the columns inside the UI element.

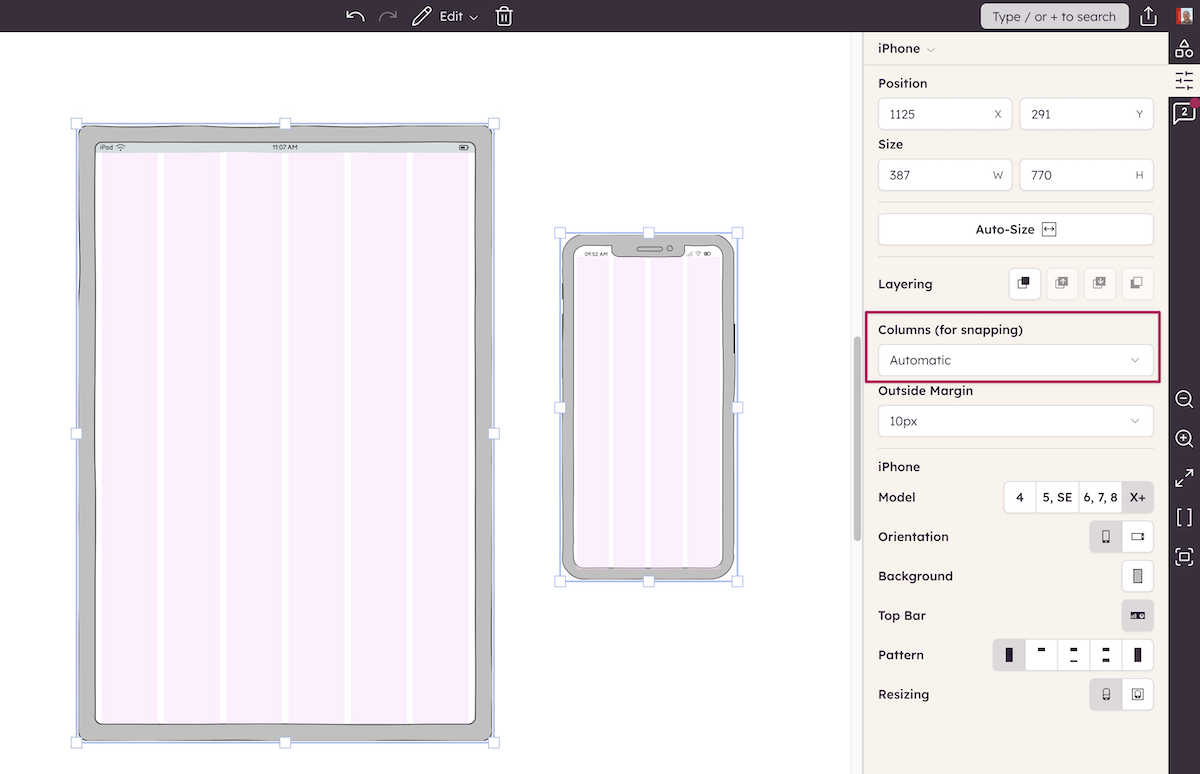

Apply automatic column layouts to mobile containers for quick, responsive wireframing.
Author

Alasdair Manson
Alasdair Manson

Customer Success Specialist

Questions or feedback? Email alasdair@balsamiq.com.
